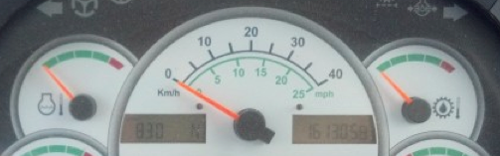

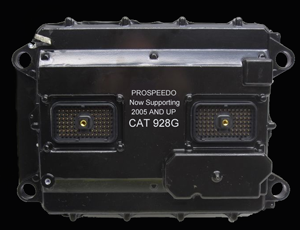

Now Supporting Caterpillar 2005 and up 928G Wheel Loaders Cost is $1200 USD Call Prospeedo 1-800-277-9269

I have had many complaints on the 2003-2008 Toyota Matrix and Corolla Speedometer clusters.

The digital speedometer stops at 299,999 km or miles and won’t roll over to 300,000 km or miles.

Many dealers say you need to buy a brand new cluster that will cost you over $500 to fix this problem.

Prospeedo charges $425 plus shipping to fix the same problem.

Ok so the big question I get asked is why won’t it roll over to 300,000 Miles or KM?

Let me try to answer that question for the guys that wish to know. Please note: This sample is on some Toyotas not all

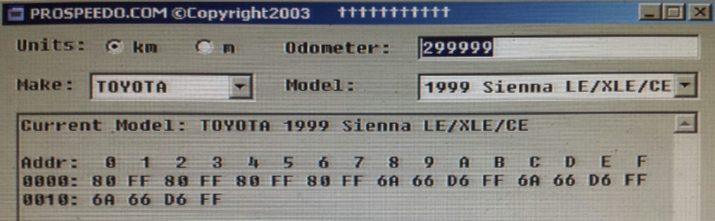

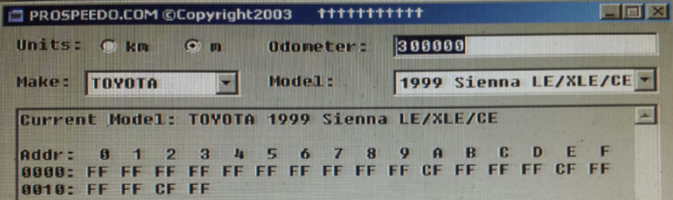

Notice the hex codes in the eprom file on line 0 and 10, the first picture shows you 299,999 km or miles it won’t matter

Now lets see what should happen when it rolls up to 300,000 km or miles

As you can see for yourself, the math that they have chosen is such a drastic change from where it was that it will not roll over.

This sample above is not a cluster issue like many think, this is an eprom problem and faulty chips on board as for Chrysler and Dodge will run the same math and hex codes on some of their speedometer clusters  as you see in the pictures above and will have no problem rolling over to 300,000 km or miles.

I have had many emails from guys telling me that Toyota might have designed it to fail at 299,999, I can tell  you I have fixed many past the 299 problem but have also found many more other ones that have been shipped in that will not work and 100% they will not roll pass the 299,999 mark on the digital display seen on cluster. It will register in the eprom past 300,000 but it will not display in cluster anything over the 299,999. So to answer the question yes! on some it is designed in the flash file to stop at 299,999, and will not display in the digital readout anything after that point. Again let me repeat this, some Toyotas will not let the digital readout  display anything after 299,999, it will register in the eprom but will not display on cluster. I hope this helps answer some of your questions many had on these Toyota speedometer cluster problems. Thanks.  Take care. The Pro!

Most 5 Common Questions Asked on a 2003 to 2006 Chevy Speedometer Repair

1.Will my mileage change or do you need to reprogram the cluster? Answer your watching to many youtube videos and No the mileage will not change and no you do not need to re-program the cluster.

2.What makes the cluster go completely dead? Answer heat is the number one problem on these clusters that will cause the digital display to dim out and if not fixed and driven will shut down the entire circuit board.

3.What’s up with the chevy electrical stepper motor problem? and the new ones are to be X27-168 right? Answer The chevy stepper motor is not an electrical problem, these motors go out in time because the manufacture made them to weak and used not enough heaver plastic to take the load. These motors are stripping and when they catch this will produce the gauge to be erratic. This is not an electrical problem, this is a plastic problem, they have made many versions to fix this issue and the last known version marked X27-168 are holding up without any problems.

4.Chevy Light Bulbs why do the burn out so fast? Answer Heat at the bottom plastic base is the problem with these bulbs, when replacing them remove the plastic base.

5. Calibration of needle settings. Answer you should never put a needle on cold, using tape and marking them will 100% make them inaccurate and not true. Always run a Circuit board hot on a bench when setting needles. Do not use a fork to remove your needles on a chevy board, never lift straight up to remove a needle. Free tip from a Pro when removing a needle from a stepper motor on a 2003 to 2006 chevy turn counter clockwise two or three times first to release the pressure on the shaft, then lift up and turn counter clockwise at the same time. Any video or any other speedometer shop showing you or telling you any other way should not be fixing speedometers.

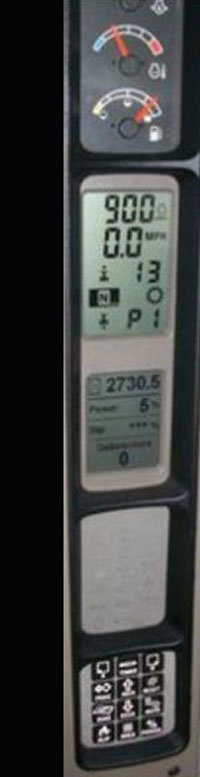

Update: Yes! for the guys asking we support the older side post hour meters found in New Holland TJ375, CASE MX285 etc.

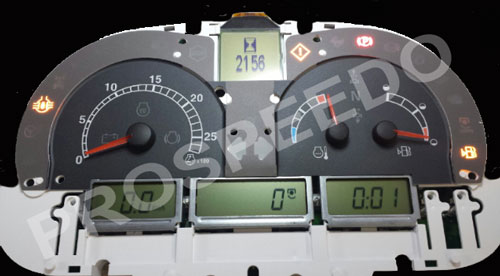

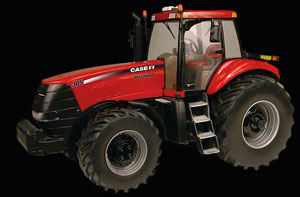

We also support the new side post meters found in the CASE IH MAGNUM 305 picture below. Thanks!

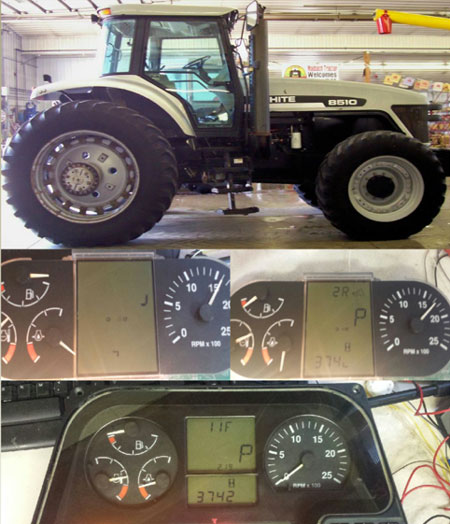

Is your White 8510 Farm Tractor having problems with the hour meter, are you missing pixels on the screen? Tractor won’t move ? Gauges are erratic when moving, Relax we can help, Check out the before and after picture below. Cost to fix is $1200 USD. Call Prospeedo  Thanks

Update: The Pro has done it again. You asked for it, you got it!

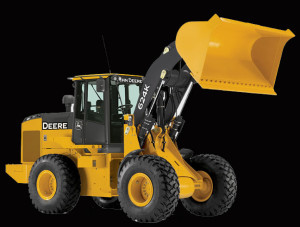

Now Supporting John Deere K Series Wheel Loaders

624K and 544K already tested and working well

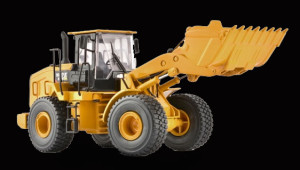

Now Supporting Caterpillar 950G and 926H

Update: Prospeedo’s No Limit Led Conversion Kit for 2003 to 2006 Chevy Trucks and Suv’s Cost is $250.00 Installed.

24 Options 16 Colors all in the palm of your hands. Why limit yourself to only one color? Make it Simple Call the Pros!

Check out Video Below. Thanks!
